Kanban For Projects and Tasks
Workzone’s Kanban view provides a more visual, intuitive way to track projects and tasks across a variety of workflows. Using the powerful Stage field provide a flexible means to manage projects and tasks across the portfolio. With it's intuitive approach to tracking progress, Kanban in Workzone helps teams stay organized and aligned at every stage of their work.
IN THIS ARTICLE
Accessing Kanban View

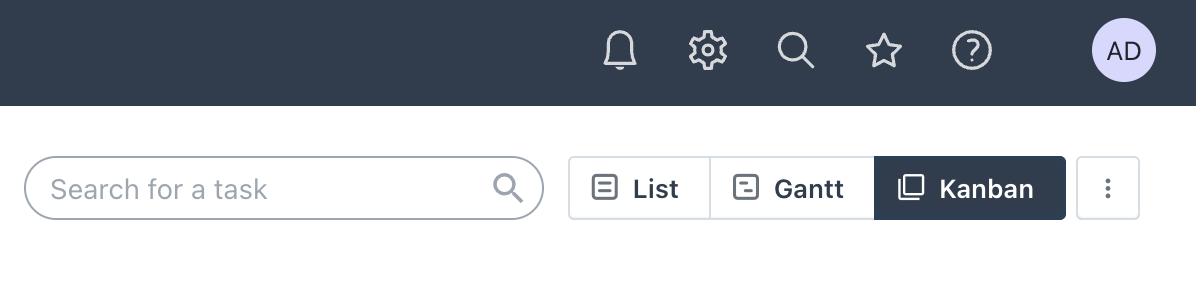

To access the Kanban view of Projects, from the main Projects area, select the Kanban button found near the top right corner of the main view, just to the right of the List and Gantt views, as shown here:

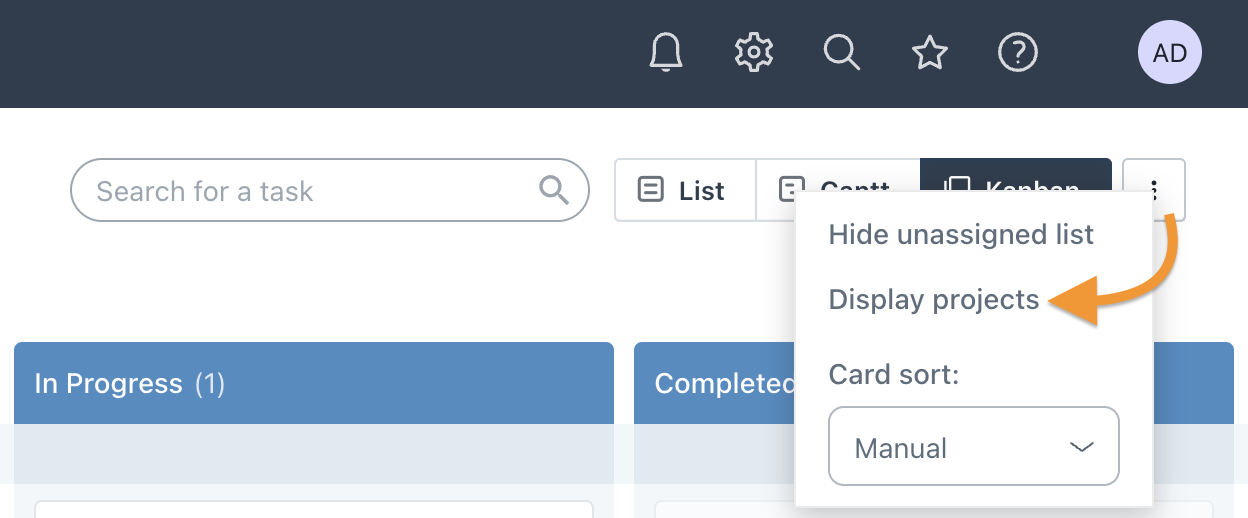

Once in Kanban view, use the more menu to toggle between viewing either project or task stages and cards.
Clicking a project's or task's card will show the task's Details Tray. Icons displayed on task cards represent different task details.
These can include dates, attachments, % complete, priority, description, duration, work, and notes. Hovering the cursor over an icon will show more information. The fields displayed on cards can be configured to display in the Fields to Display settings, globally or individually.
Clicking the project name on a task's card applies a filter for that project.
NOTE: The Kanban view is subjected to the same Filter options as the List and Gantt views.
Setting Stages
The Stage field in the List and Gantt views of the Projects area represents the corresponding Kanban view column. These different stages for projects and tasks can be used to move them from one column to another via drag and drop. Workzone provides the following stages by default:
- To-Do
- In Progress
- Completed
However, Administrators can configure stages that work best for the team. Different sets of stages can be configured for both project and task cards.
NOTE: Stages are configured globally. The same stages will appear for all projects across all workspaces.

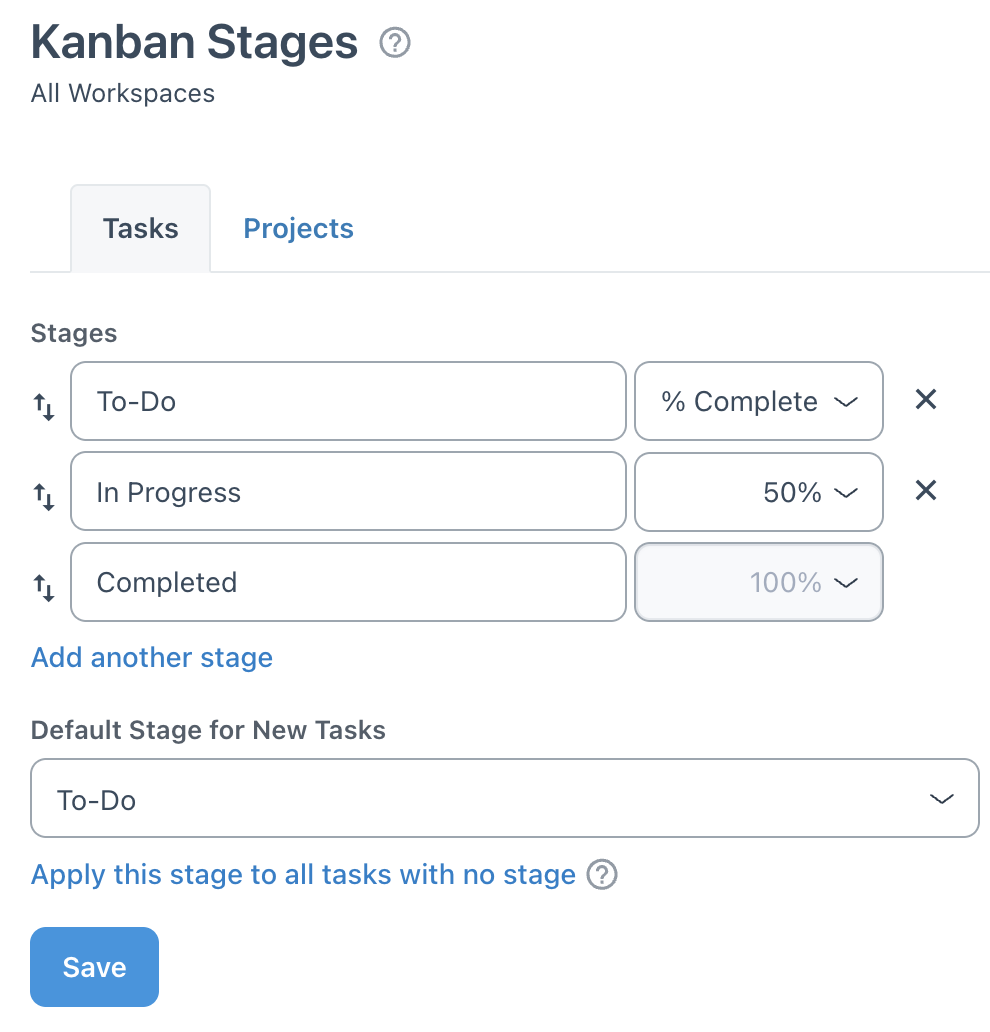

Administrators can click the settings (gear icon) in the top right corner when viewing All Workspaces and select Kanban stages in the Projects section on the left side, as shown here:
Select either the Tasks or Projects tabs at the top of the page to configure the stages for the appropriate items. Click Add another stage to enter a name for a new stage. Use the "X" icon on the right to remove a stage and click in the field for the stage's name to change the name. To reorder existing stages, drag and drop the double arrow icon to the left of each stage.
NOTE: The Completed stage is tied to the status of tasks and cannot be renamed or removed.
The Default Stage for New Projects/Tasks dropdown option defines which stage should be applied to every newly created task. If this setting is set to None (which is the initial default), newly created tasks will have no stage assigned. The Apply this stage to all projects/tasks with no stage option, which only displays when making a change to the Default Stage for New Projects/Tasks dropdown, applies the newly selected default stage to all existing tasks that do not yet have a stage assigned.
Using Stages
In Kanban view, stages are used by dragging and dropping the task's card representing a task from one column to another, as shown here:

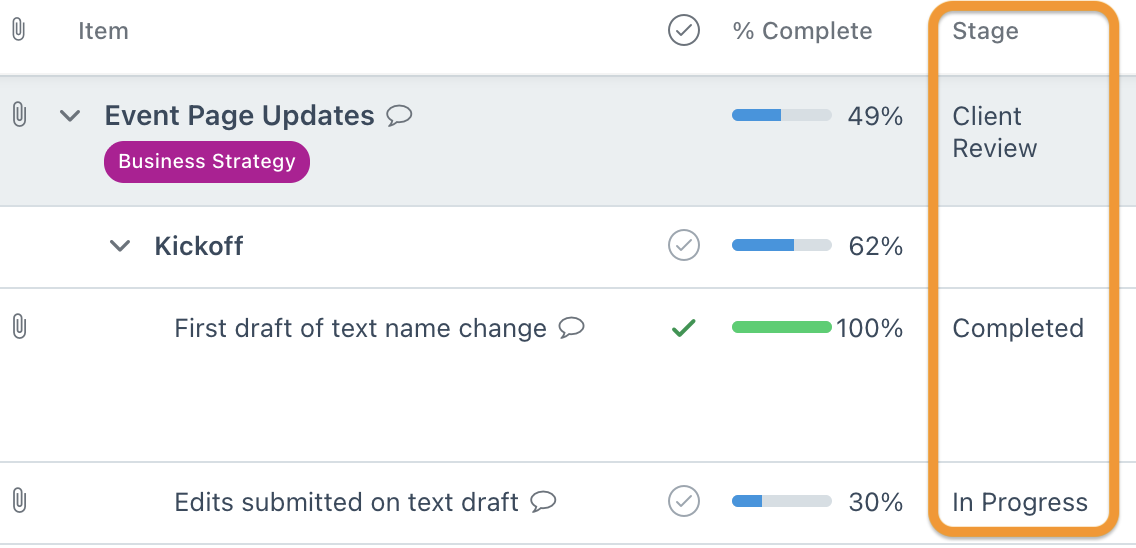

To use stages in other Projects views like List or Gantt, enable the Stage column to show, following the steps to Hide/Display columns. Bulk assigning stages to tasks is also possible using the steps to Edit Multiple Tasks At Once.
Projects or tasks without a stage appear in an Unassigned column when viewing the Kanban view of Projects. Those project or task cards can be dragged to a stage's column, which assigns that respective stage.
Moving a task's card to the Completed stage is the same as marking the task complete in other views.
Reports
There are three Kanban related reports, found in the main Reports area under the Kanban section on the left, as shown here:
Card status - This report shows, list by list, which cards are on track or overdue based on the end date of the task, as compared to today’s date. Use the "Tasks as cards" and "Projects as cards" radio buttons to select which data set appears on the report.
Aging summary - This report shows the average number of days cards assigned to a user have been in the stage. Use the "Tasks as cards" and "Projects as cards" radio buttons to select which data set appears on the report.
Completed cards - This report shows how many tasks have been completed within the last 7 days, 30 days, or year user by user.
